BST-2600A plastic carbonate drink preform injection molding machine BST-2600A plastic carbonate drink preform injection molding machine

BST-2600A injection molding machine for carbonate drink preform
Shot weight is 650-690 g
Max opening stroke : 530 mm
Space between tie-bars : 554 X 554 mm
We have Imported advanced computer systems, Chinese / English interface.
You can save 100 sets of mold parameters.
Advanced clamping structure and injection parts, precision hydraulic system and circuit design.
Suitable for producing differernt types of precision pet preform ,cap ,PVC,PPR Pipe Joint Electric parts

Style:
  • Horizetal
Condition:
  • New
Automatic:
  • Manual
Payments:
  • L/C
Quantity:
  • 1
Quantity:
Share this:
  • Model: BST-2600A
  • Brand: Best Machinery
  • Code: BST-2600A
  • Name:BST-2600A injection molding machine
  • Screw diameter:54-56mm
  • Shot weight:650-690 g
  • Injection rate:200-215 g/s
  • Clam tonnage:2600KN
  • Toggle stroke:530mm
  • Mould thickness:200-550mm
  • Space between tie-bars:554*554mm
  • Ejector stroke:160mm
  • Ejector tonnage:70KN
  • Product Description
  • Company information
  • Packaging & Shipping
  • Our Services
  • FAQ
机器和模具水印1 Strong Technical design ability, Stable quality, and large production capability, Famous brand.

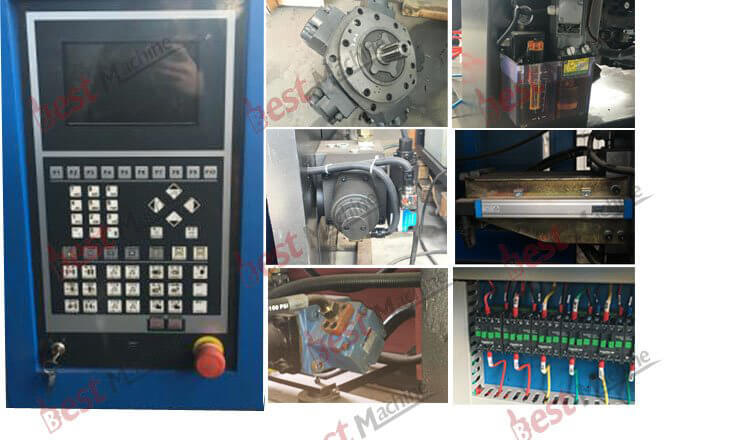

CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.

HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.配置水印

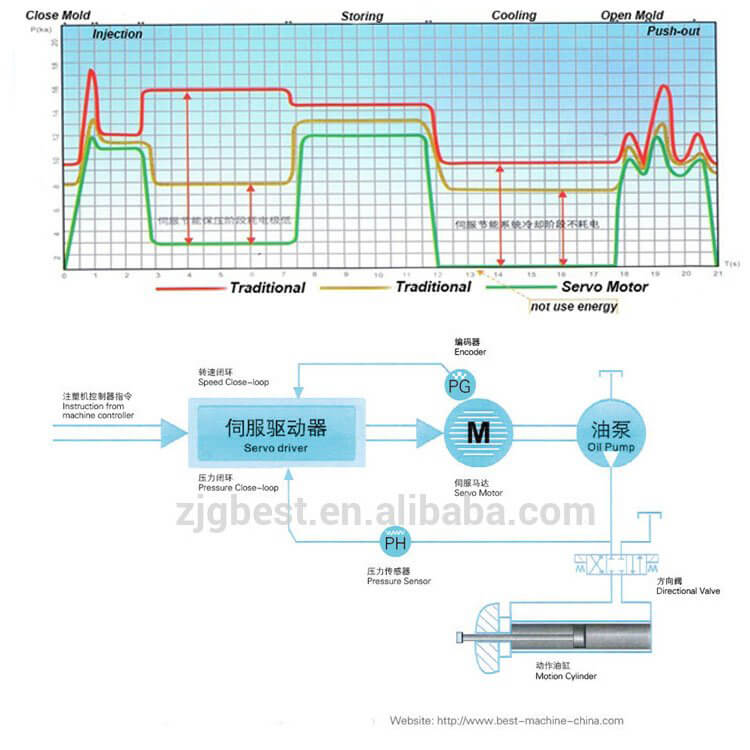

SERVO SYSTEM
 After receiving the pressure and flow instruction from computer controller, the servo driver will compare it with the actual pressure and flow feedback, and rectify the difference the rotating speed of the servo motor. in this way , the control of injection moulding is not only acurate but also fast, and the repeatability of the products high as well.伺服
Technical parameters


Model Clamp tonnage (KN) Ejector tonnage (KN) Heat power(KN) Max.Pump pressure (MPA) Pump motor power(kw) Machine dinension(m) Machine weight(t) Oil tank capacity(L)
BST-1000A 1000 50 7.6 16 11 4.3*1.5*1.6 3.4 180
BST-1320A 1320 50

8.2 16 13 4.5*1.6*1.7 3.9 200
BST-1400A 1400 50 8.2 16 13 4.8*1.6*1.7 4.2 220
BST-1650A 1650 70 8.2 16 15 5.0*1.6*1.7 5 250
BST-1800A 1800 70 11 16 15 5.3*1.6*1.75 5.5 250
BST-2050A 2050 70 11.6 16 17 5.4*1.6*1.75 6 270
BST-2300A 2300 70 11.6 16 18.5 5.7*1.8*2.0 6.5 300
BST-2600A 2600 70 15.5 16 25 6.1*1.7*1.8 8 350
BST-3000A 3000 80 15.5 16 25 6.5*1.8*1.8 9 370
BST-3400A 3400 80 17.5 16 30 6.7*2.0*1.9 10.8 400
BST-3850A 3850 80 17.5 16 30 7.0*2.2*2.0 11.5 400
BST-4500A 4500 85 20.5 16 37 7.3*2.3*2.4 13.8 450
BST-4800A 4800 125 23.4 16 40 8.3*2.2*2.2 16.2 600
BST-5200A 5200 125 28.1 16 43.5 8.6*2.2*2.25 20 750
BST-5800A 5800 125 28.1 16 48.5 8.75*2.2*2.3 21.8 850
BST-6500A 6500 160 37.1 16 55 9.2*2.2*2.4 26 1000
BST-7500A 7500 180 40.9 16 67 10.7*2.3*2.7 38 1200
BST-8500A 8500 186 42.5 16 74 11*2.4*2.75 45 1300
BST-11000A 11000 210 63 16 128 14*2.9*4.1 63 1800
BST-13000A 13000 280 85.25 16 160 13.2*3.1*3.6 76 2400

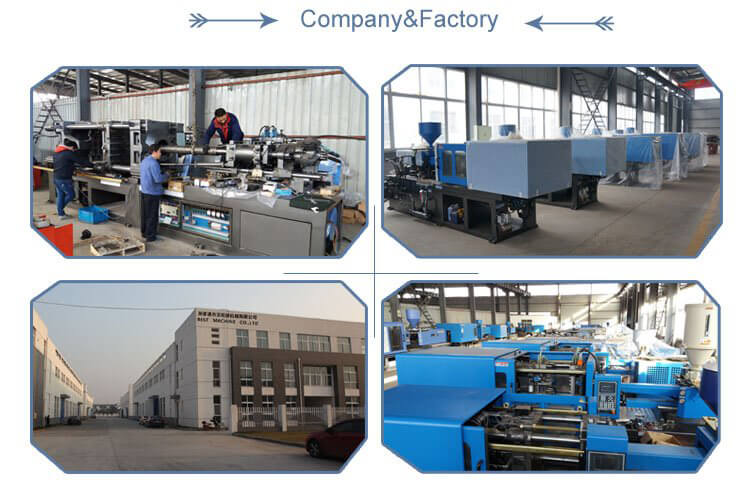

ZhangJiaGang City BEST Machinery Co., LTD is located in a bueatiful development zone in Tangqiao, Zhangjiagang City, Jiangsu Province, China.

Company is very professional in research, development, manufacturing of all kinds plastic machinery and moulds, with more than 3,000 million fixed assets, during the past 19 years, we always force our energy into new areas of plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

The machcines from our company carry good quality and effective after-sales service, upon the domestic market, we hotly export machines to Russia, South Africa, Vietnam, Ethiopia, Saudi Arabia, Malaysia, Canada, Algeria, Uzbekistan and many other countries, create good sales performance and well feedback, all to strengthen our position in this field. With full enthusiasm, serious attitude and win-win business conception, welcome you to become our clients!公司

We take care of our machine packing and loading.

Injection machine with anti-rust process, make sure no rust due to ocean shipment.

Each package would be fixed stable inside container, make sure no damage or crash during whole shipment.We should take photos of loading, and send to you for reference.business and packing

合作品牌1
When you finish the Preparation conditions,our fast and professional after - sales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.技术支持

After-sales service

 1.We will delivery the machine and provide the bill of load on time to make sure you can     get the machine quic    kly

2. When you finish the Preparation conditions,our fast and professional afters-           ales service engineer team will go to your factory to install the machine,give you the op   erating manual,and train your employee until they can operate the machine well.

3.We often ask feedback and offer help to our customer whose machine have been use    d in their factory fo      r some time.

4. We provide one year warranty

5. Well-trained & experienced staff are to answer all your inquiries in English and      Chinese

6 . 24 hours for engineer response

7 . 12 Months guarantee and life-long technical support.

8. Your business relationship with us will be confidential to any third party.

9.  Good after-sale service offered, please get back to us if you got any questions.

FAQ

Q1: Are you a trading company or a manufacturer?

A1: We are a manufacturer, we supply the factory price with good quality, welcome to visit !



Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.



Q3: When can I get my machine after I paid?

A3: The deliver time is based on the exact machine you confirmed.



Q4: How can I install my machine when it arrives?

A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.



Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.

×
