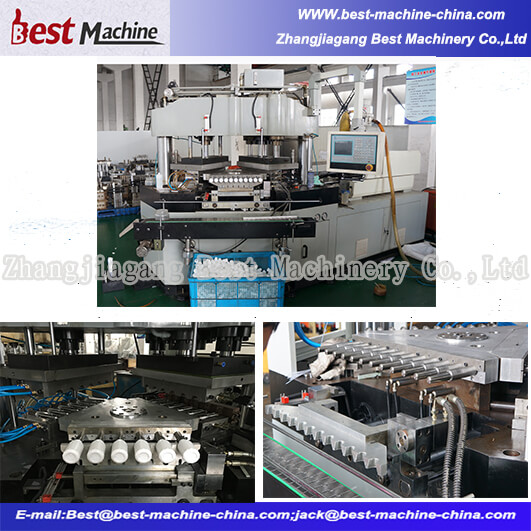

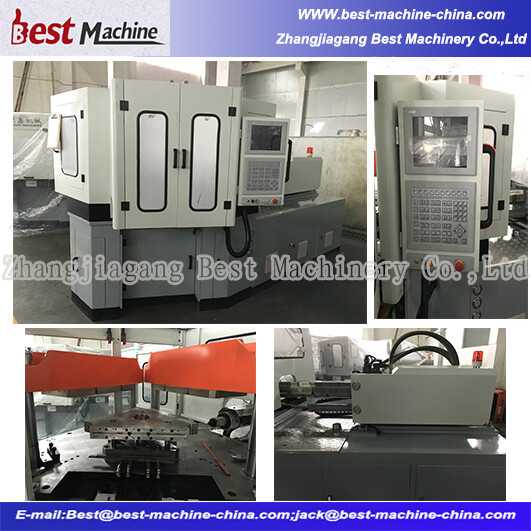

BSD-60B Automatic Injection Blow Molding Machine For Small Plastic Bottle

BSD-60B Automatic Injection Blow Molding Machine For Small Plastic Bottle

Style:

15ML

Quantity:

Inquire Add To Basket

Share this:

Model： BSD-50H
Brand： Best Machinery
Name：Injection Blow Molding Machine
Weight ：10t
Screw L/D：22
Shot volume：430cm³
motor power：30kw
max.screw stroke：220mm
max.screw speed：10-235rpm
injection clamping force：600kn
blowing clamping force：152kn
dimension：4150*1850*2400mm

Product Description
Technical Parameters
Our service
Certification

Features
1 Hydraulic system adopt electro-hydraulic hybrid servo system,can save 40% power than usual.
2 Rotation device,ejection device and flipping device adopt lasted servo motor,it can improve the performance stable,fast speed and no noise.
3 Apply the double vertical pole and single horizontal beam to make enough rotation space,make the mold installation easy and simple.

No.	item	Unit	Data
1	Dia.of screw	mm	55
2	Screw L/D		22
3	Shot volume	cm³	430
4	Injection Weight	g	400
5	Injection Pressure	Mpa	161
6	Max.screw stroke	mm	220
7	Max.screw speed	rpm	10-235
8	Heating capacity	kw	13
9	No.of heating zone	Qty	3
10	clamping&blowing system
11	clamping force of injection	KN	600
12	clamping force of blowing	KN	152
13	opening stroke of mold plant	mm	140
14	lifign height of rotary table	mm	75
15	max.platen size	mm	780*390
16	min.mold thickness	mm	280
17	heating capacity of mould	Kw	4
18	stripping system
19	stripping troke	mm	220
20	driving system
21	motor power	kw	30
22	hydraulic pressure	Mpa	14
23	product range
24	suitable bottle range	L	0.015-0.85
25	max.bottle height	mm	≤210
26	max.dia.of bottle	mm	≤120
27	other
28	dry cycle	s	4.5
29	min.Air pressure	Mpa	1.2
30	discharge rate of compressed air	m³/min	＞0.8
31	water flowage	m³/h	3.5
32	total rated power with mold heating	Kw	45.5
33	Dimension(LWH)	mm	415018502400
34	net weight	T	10

What service can offer you ?
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
• 1 Years guarantee
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back to us if you got any questions.

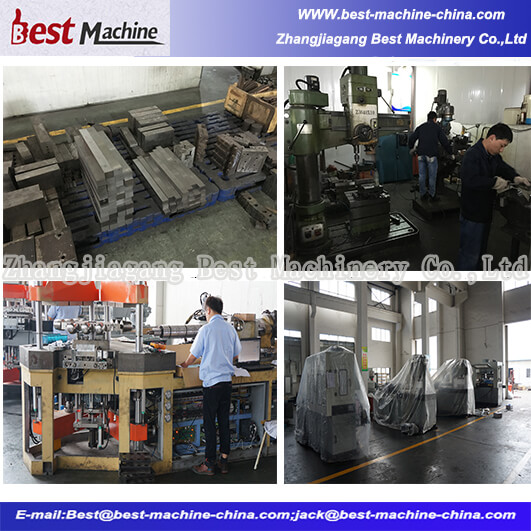

Company is very professional in research, development, manufacturing of all kinds plastic machinery and moulds, with more than 3,000 million fixed assets...
