BST-1650A plastic injection molding machine BST-1650A plastic injection molding machine

BST-1650A plastic injection molding machine
Shot weight 286-326 g
Max opening stroke :405 MM
Space between tie bars :455 X 425 MM,
We have Imported advanced computer systems, Chinese / English interface.
You can save 100 sets of mold parameters.
Advanced clamping structure and injection parts, precision hydraulic system and circuit design.
Suitable for producing different types of precision small parts.

Style:
  • Horizetal
Condition:
  • New
Automatic:
  • Manual
Payments:
  • L/C
Quantity:
  • 1
Quantity:
Share this:
  • Brand: Best Machinery
  • Name:BST-1650A plastic injection molding machine
  • Screw diameter:42 mm
  • Shot weight:286 g
  • Injection rate:135 g/s
  • Toggle stroke:405 mm
  • Mould thickness:170-440 mm
  • Space between tie-bars:455*425 mm
  • Ejector stroke:155 mm
  • Ejector tonnage:70 KN
  • Clamp tonnage:1650 KN
  • Specifications
  • Technical parameters
  • Our service
  • Product Description

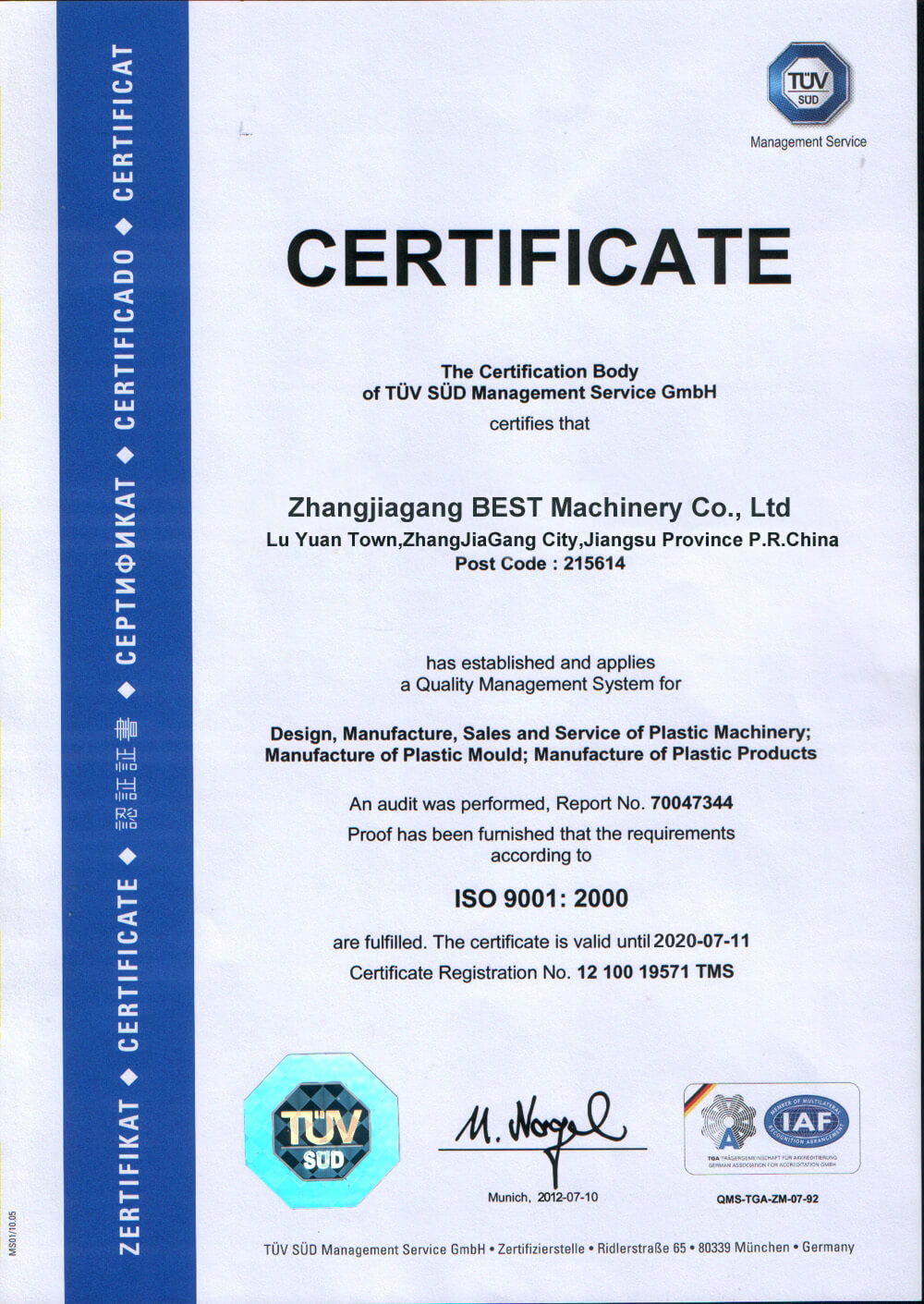

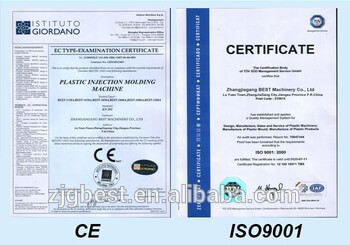

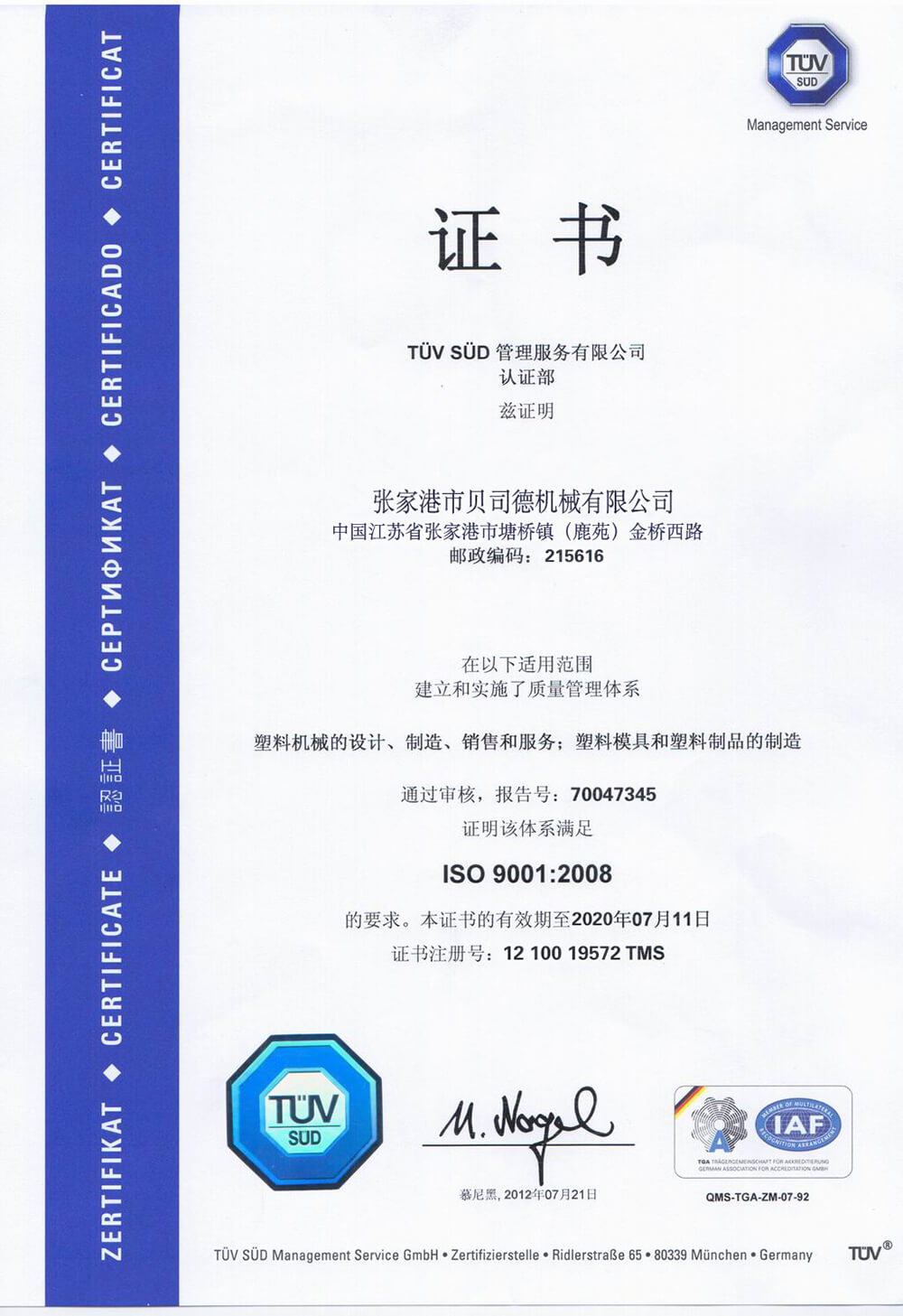

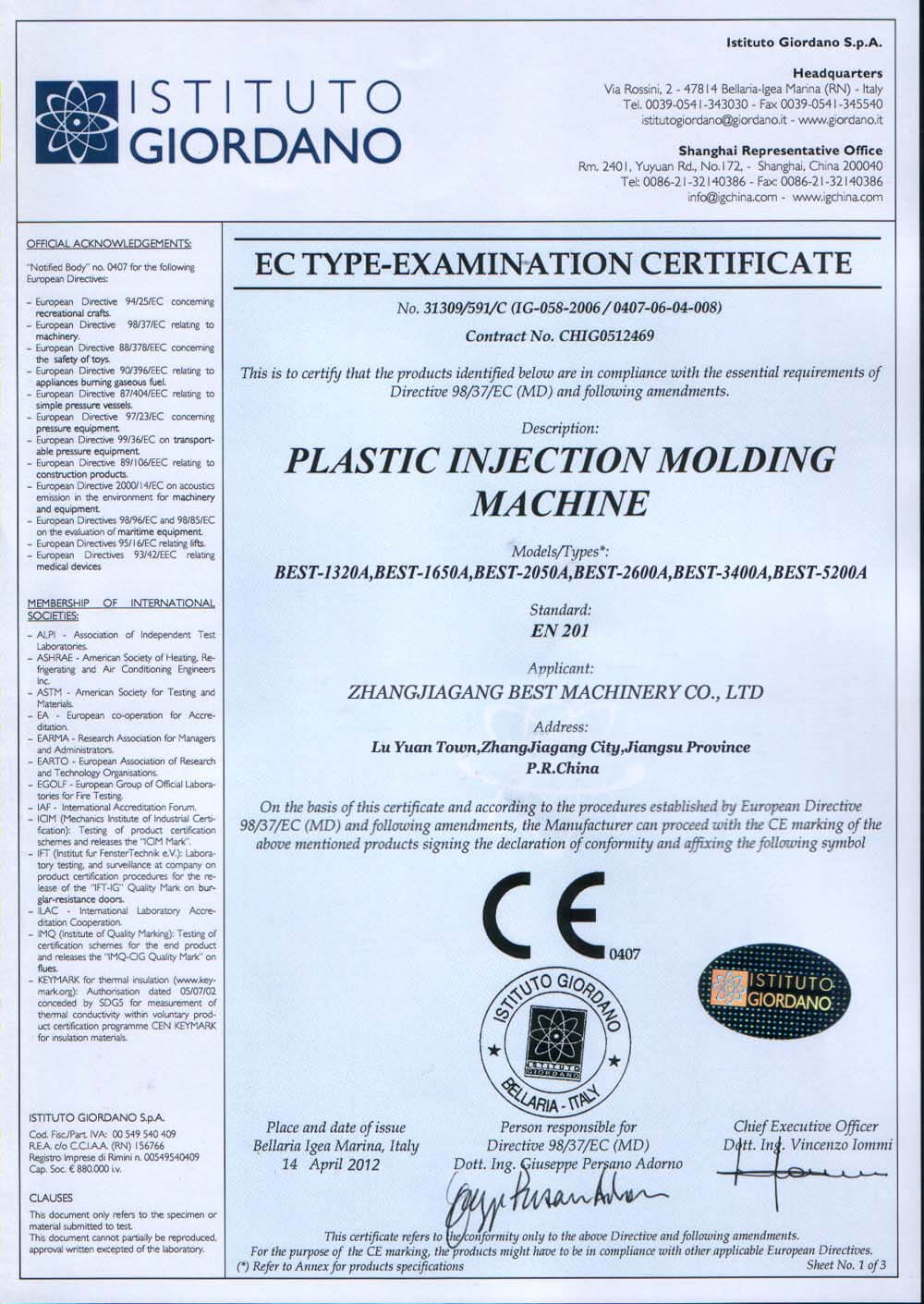

  • Certification
BST-1650A plastic injection molding machine
- Shot Weight is 286 g
- Max Opening Stroke:405 mm
- Space Between Tie-bars:455*425 mm
- Imported advanced computer systems, Chinese / English interface
- Can save 100 sets of mold parameter
- Advanced clamping structure and injection parts, precision hydraulic system and circuit design
- Suitable for producing different types of precision small parts
- A variety of text can be switched
- Manual, semi-automatic and fully automatic mode
- Automatic movement monitoring with alarm and fault diagnosis
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement
MODEL                  BST-1650A
INJECTION UNIT
A B
Screw diameter mm 42 45
Shot size(theoretical) Cm³ 318 362
Shot weight g 286 326
Injection pressure Mpa 174 151
Injection rate g/s 135 155
Screw L/D ratio L/D 22.3 20.8
Screw speed r.p.m 0-190
Nozzle Diameter Srmm 10
CLAMPING

Clamp tonnage KN 1650
Toggle stroke mm 405
Mould Thickness mm 170-440
Space between tie-bars mm 455X425
Ejector stroke mm 155
Ejector tonnage KN 70
Ejector number Piece 5
Hole Diameter mm 125
OTHERS

Heat power KW 8.2
Max. pump pressure MPa 16
Pump motor power KW 15
Valve Size mm 16
Machine dimension m 5.0X1.6X1.7
Machine weight t 5
Oil tank capacity L 250

Quality:12month Quality Guarantee,Free spare parts replacement,(Not include man-made sabotage)
Service:We provide free advanced training and maintance in china factory ,and 24hours on-line or phone service
If you request ,we also can provdie installaton and training abroad ,until customer’s satisfication
Delivery time:35days after advance payment
Payment:In cash ,T/T transfer ,LC etc
Goals:Chase customers’requirment ,and improve ourselves better

FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement

CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.

HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.
×
