BST-2050A plastic injection molding machine

BST-2050A plastic injection molding machine

BST-2050A plastic injection molding machine
shot weight :415-472 g
max opening stroke :445 MM
space between tie bars : 490 X 464 MM
we have Imported advanced computer systems, Chinese / English interface.
You can save 100 sets of mold parameters.
Advanced clamping structure and injection parts, precision hydraulic system and circuit design.

Style:	Horizetal
Condition:	New
Automatic:	Manual
Payments:	L/C
Quality:	1

Quantity:

Inquire Add To Basket

Share this:

Brand： Best Machinery
Name：BST-2050A plastic injection molding machine
Shot weight：415 g
Injection rate：142 g/s
Toggle stroke：440 mm
Toggle stroke：440 mm
Space between tie-bars：480*460 mm
Ejector stroke：155 mm
Ejector tonnage：70 KN
Clamp tonnage：2050 KN
Srew diameter：45 mm

Specifications
Technical parameters
Our service
Product Description

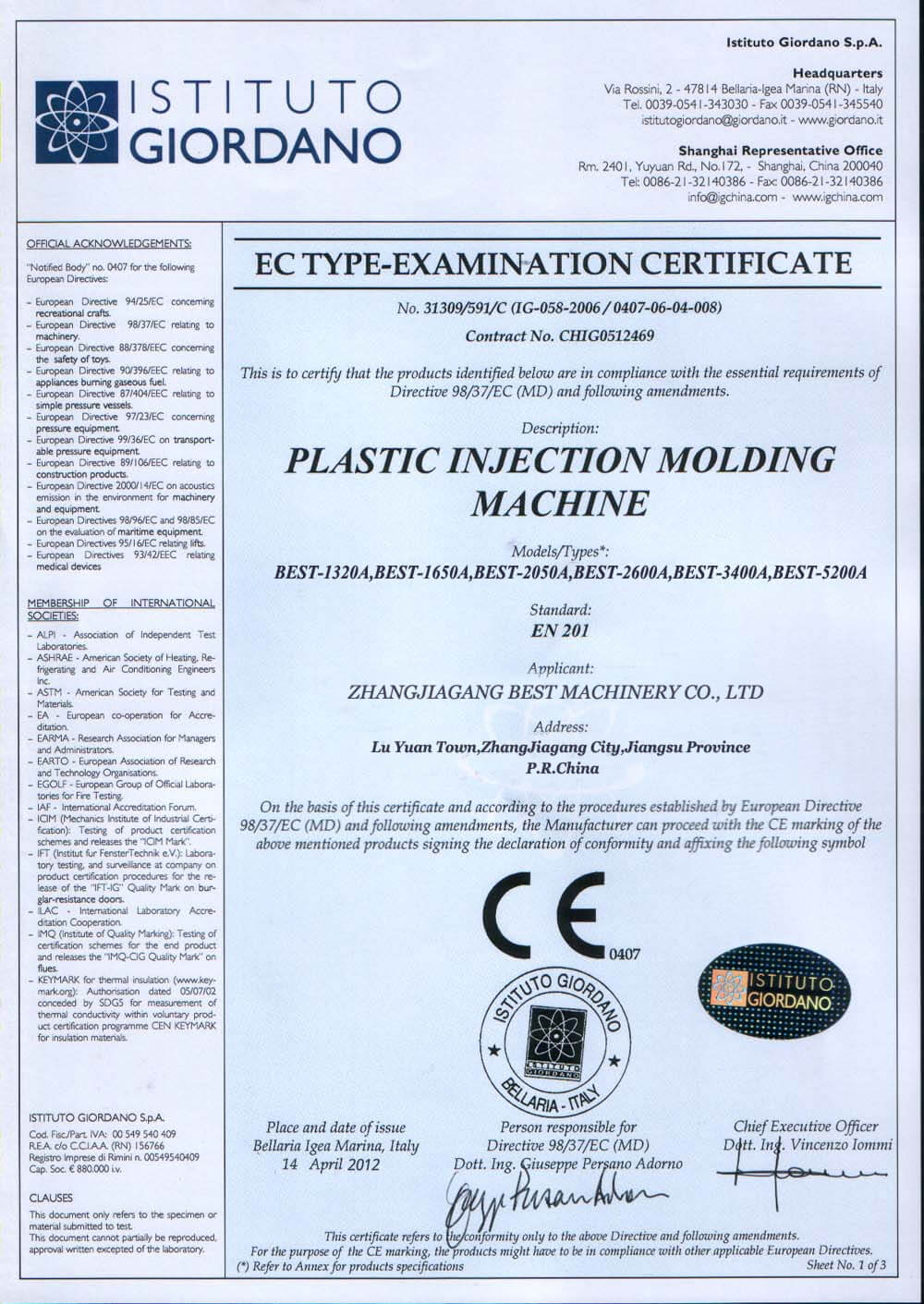

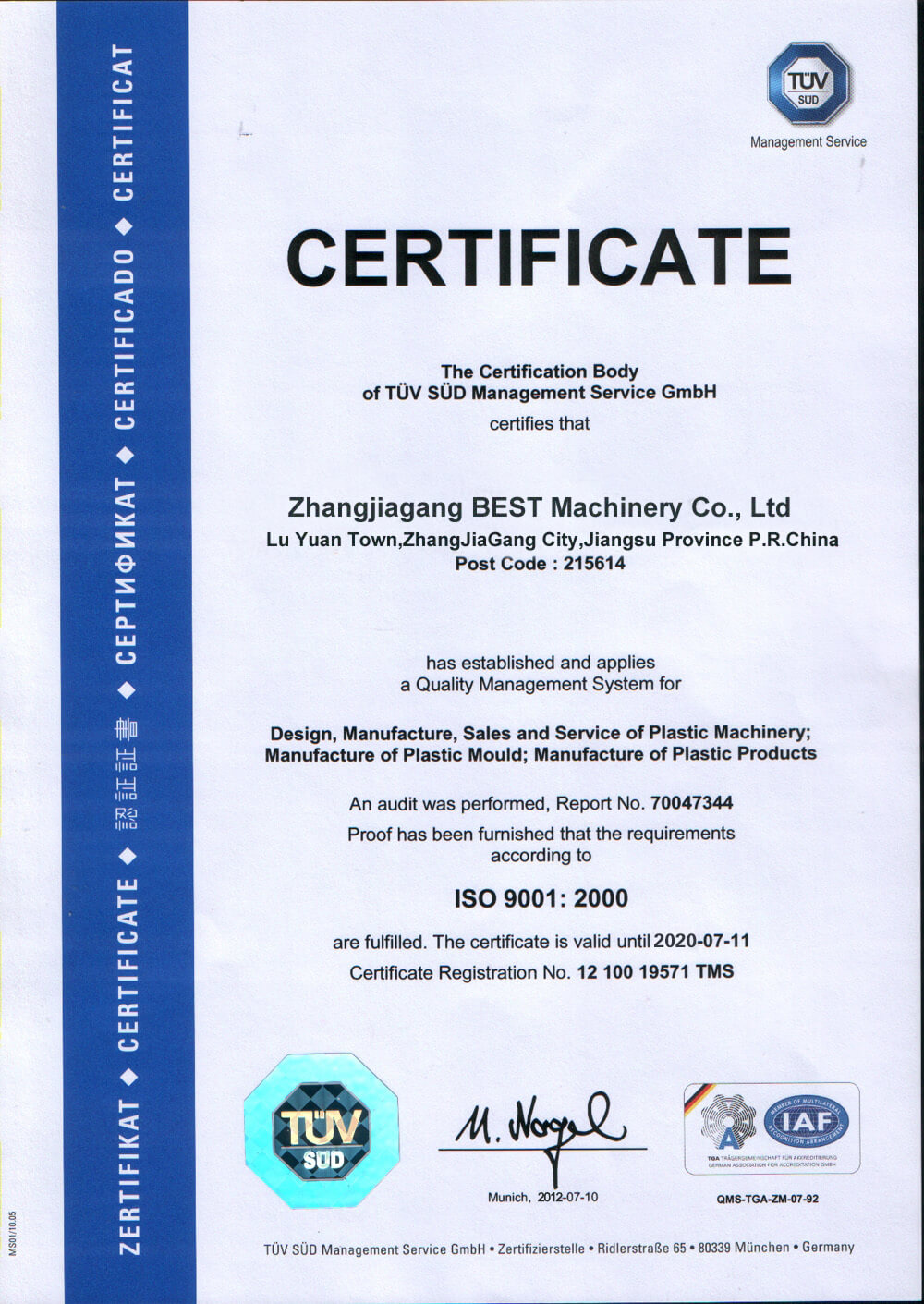

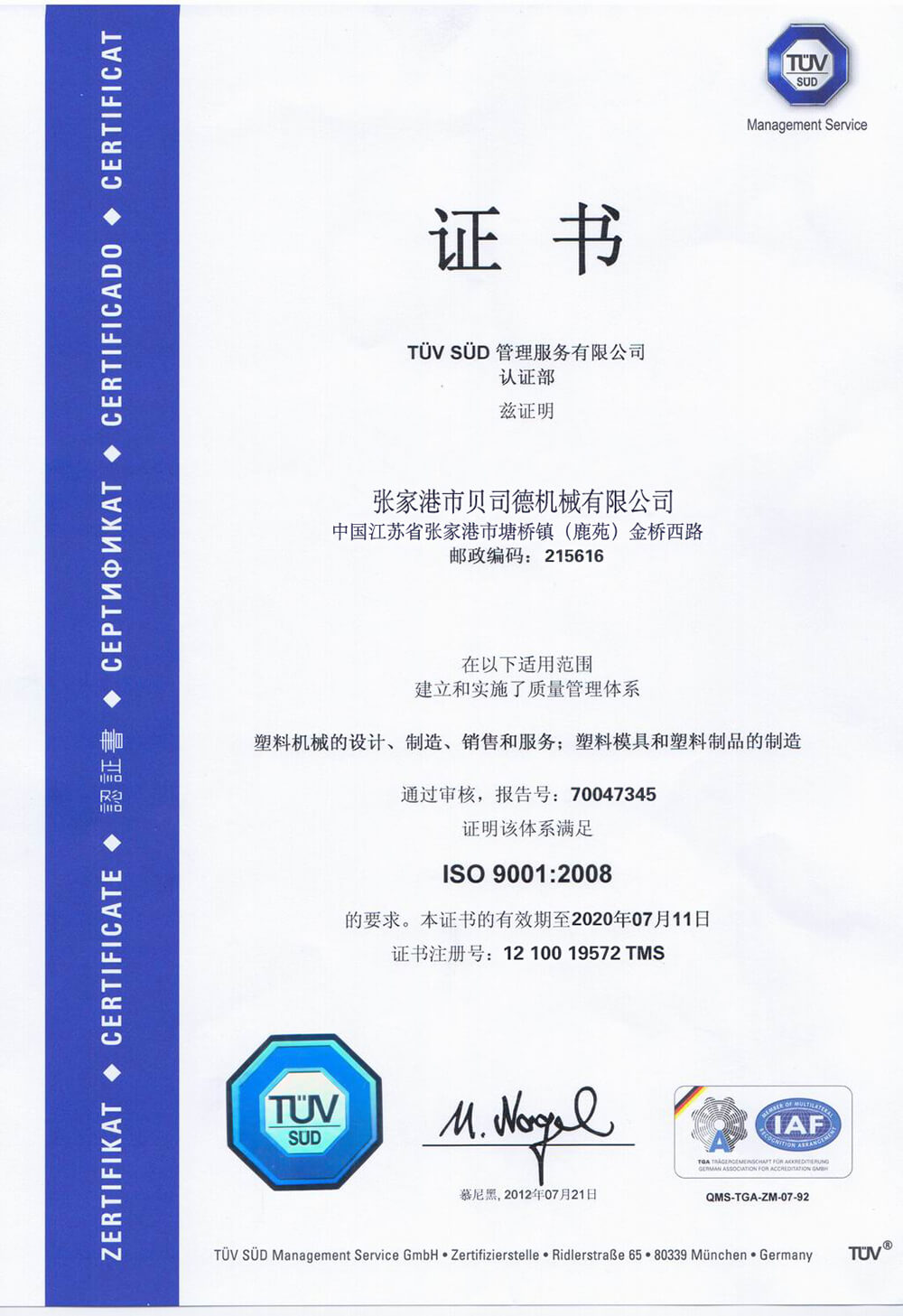

Certification

BST-2050A plastic injection molding machine
- Shot Weight is 415 g
- Max Opening Stroke:445mm
- Space Between Tie-bars:490*464 mm
- Imported advanced computer systems, Chinese / English interface
- Can save 100 sets of mold parameter
- Advanced clamping structure and injection parts, precision hydraulic system and circuit design
- Suitable for producing different types of precision small parts
- A variety of text can be switched
- Manual, semi-automatic and fully automatic mode
- Automatic movement monitoring with alarm and fault diagnosis
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement

MODEL	BST-2050A
INJECTION UNIT		A	B
Screw diameter	mm	45	48
Shot size(theoretical)	Cm³	460	525
Shot weight	g	415	472
Injection pressure	Mpa	188	165
Injection rate	g/s	140	159
Screw L/D ratio	L/D	22	20.6
Screw speed	r.p.m	0-180
Nozzle Diameter	Srmm	20
CLAMPING
Clamp tonnage	KN	2050
Toggle stroke	mm	445
Mould Thickness	mm	190-470
Space between tie-bars	mm	490X464
Ejector stroke	mm	155
Ejector tonnage	KN	70
Ejector number	Piece	5
Hole Diameter	mm	125
OTHERS
Heat power	KW	11.6
Max. pump pressure	MPa	16
Pump motor power	KW	17
Valve Size	mm	16
Machine dimension	m	5.4X1.6X1.75
Machine weight	t	6
Oil tank capacity	L	270

Quality:12month Quality Guarantee,Free spare parts replacement,(Not include man-made sabotage)
Service:We provide free advanced training and maintance in china factory ,and 24hours on-line or phone service
If you request ,we also can provdie installaton and training abroad ,until customer’s satisfication
Delivery time:35days after advance payment
Payment:In cash ,T/T transfer ,LC etc
Goals:Chase customers’requirment ,and improve ourselves better

FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement

CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.

HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.
