BST-2600A plastic injection molding machine BST-2600A plastic injection molding machine

BST-2600A shot weight 650-690g,max opening stroke:530MM,space between tie bars:554X554MM,
we have Imported advanced computer systems, Chinese / English interface.
You can save 100 sets of mold parameters.
Advanced clamping structure and injection parts, precision hydraulic system and circuit design.

machine size(LxWxH):
  • 6.1x1.65x1.8m
Share this:
  • Model:BST-2600A
  • origin:Zhang Jia Gang city

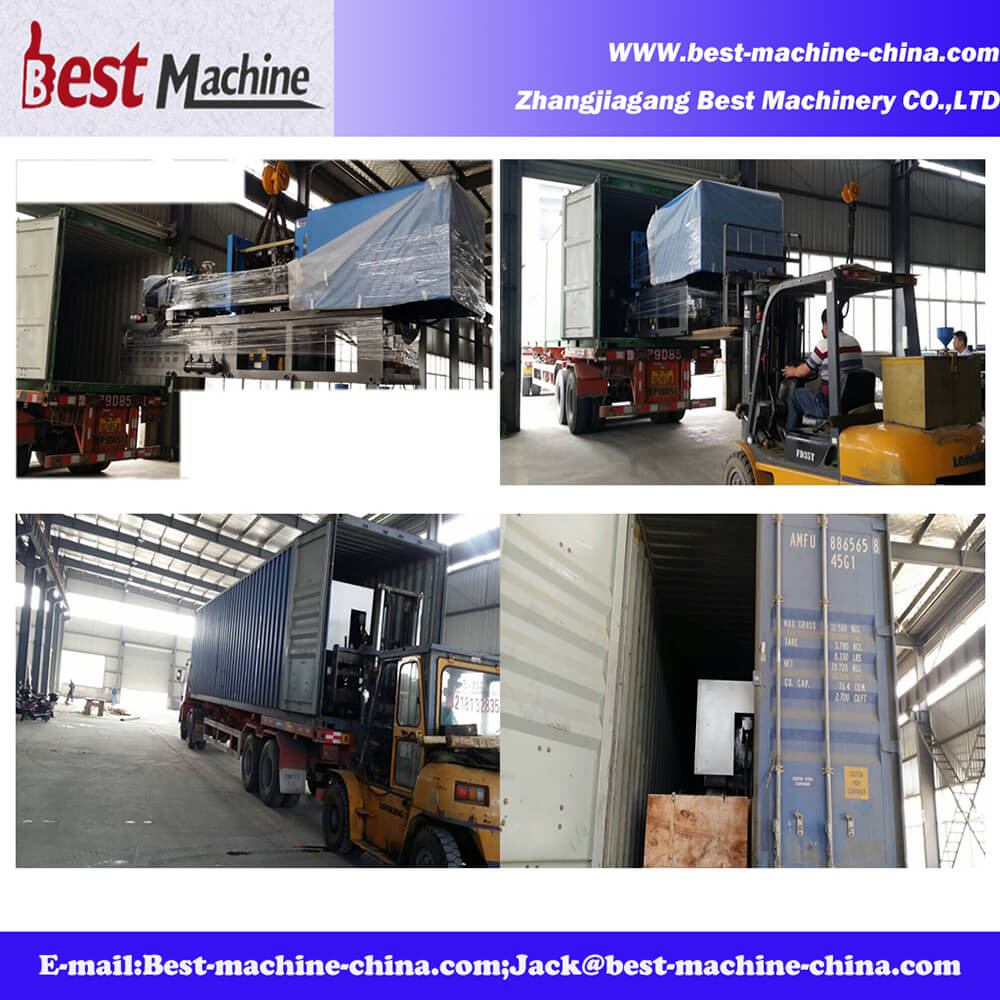

  • packaging:the tray
  • Product Description
  • Product Description1
  • Product Description2

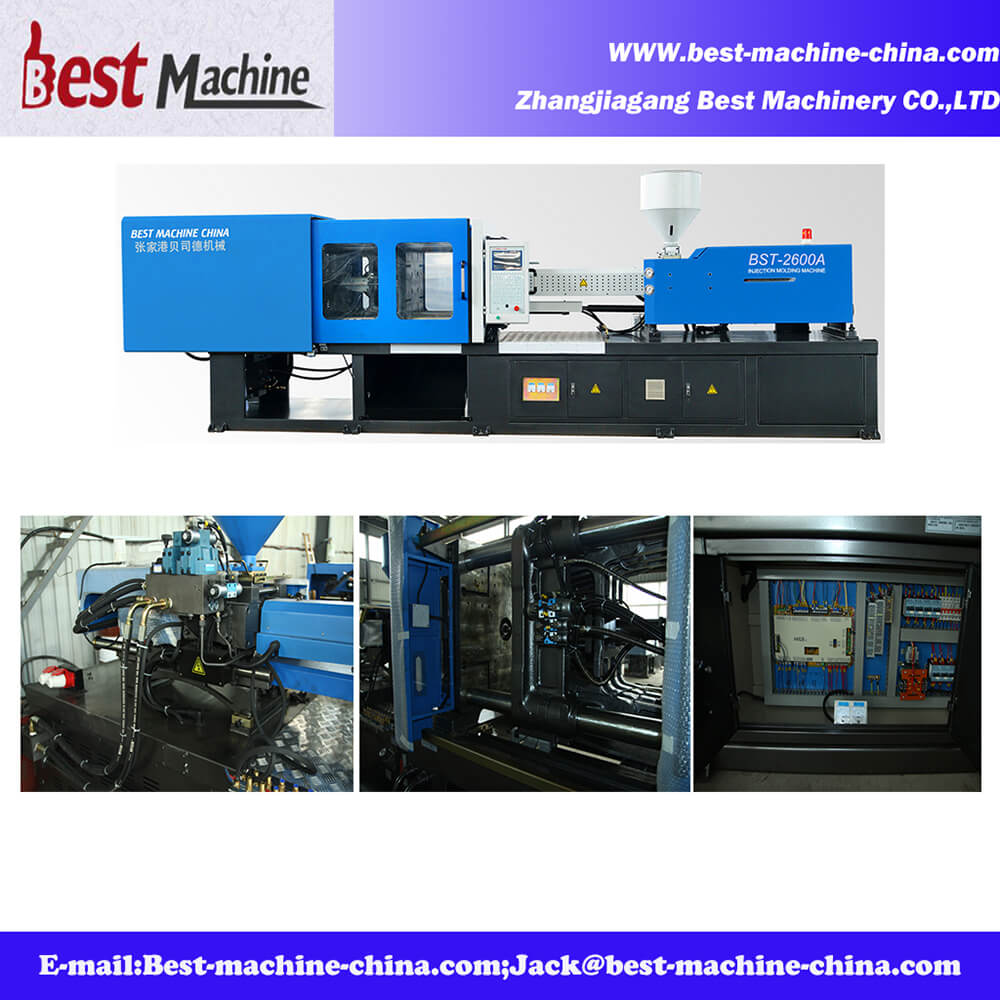

BST-2600A injection molding machine
The computer is imported from Industry family,The LCD displaying screen with high clarity has Chinese and English language to display
New type 5-point toggle device with the advantage of stable movement curve and gentle shock
Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability
Transducer control clamping stroke
Nitrided screw and barrel with long service life
Smelted screw with big L/D ratio to the result of high quality plasticizing and color-fixing
Transducer control injection stroke

MODEL                    BST-2600A
Screw diameter mm 54 56
Shot size(theoretical) Cm³ 720 770
Shot weight g 650 690
Injection pressure Mpa 190 178
Injection rate g/s 200 215
Screw L/D ratio L/D 22.5 21.6
Screw speed r.p.m 0-180
Nozzle Diameter Srmm 20

Clamp tonnage KN 2600
Toggle stroke mm 530
Mould Thickness mm 200-550
Space between tie-bars mm 554X554
Ejector stroke mm 160
Ejector tonnage KN 70
Ejector number Piece 9
Hole Diameter mm 160

Heat power KW 15.5
Max. pump pressure MPa 16
Pump motor power KW 25
Valve Size mm 16
Machine dimension m 6.1X1.7X1.8
Machine weight t 8
Oil tank capacity L 350

Quality:12month Quality Guarantee,Free spare parts replacement,(Not include man-made sabotage)
Service:We provide free advanced training and maintance in china factory ,and 24hours on-line or phone service
If you request ,we also can provdie installaton and training abroad ,until customer’s satisfication
Delivery time:35days after advance payment
Payment:In cash ,T/T transfer ,LC etc
Goals:Chase customers’requirment ,and improve ourselves better
