BST-4800A plastic injection molding machine BST-4800A plastic injection molding machine

BST-4800A shot weight :1590-1673g,MAX OPENING STROKE:710MM,SPACE BETWEEN TIE BARS:750X720MM
we have Imported advanced computer systems, Chinese / English interface.
You can save 100 sets of mold parameters.
Advanced clamping structure and injection parts, precision hydraulic system and circuit design.

machine size(LxWxH):
  • 8.3x2.2x2.2m
Share this:
  • Model:BST-4800A
  • origin:Zhang Jia Gang city
  • packaging:the tray
  • Product Description
  • Product Description1
  • Product Description2

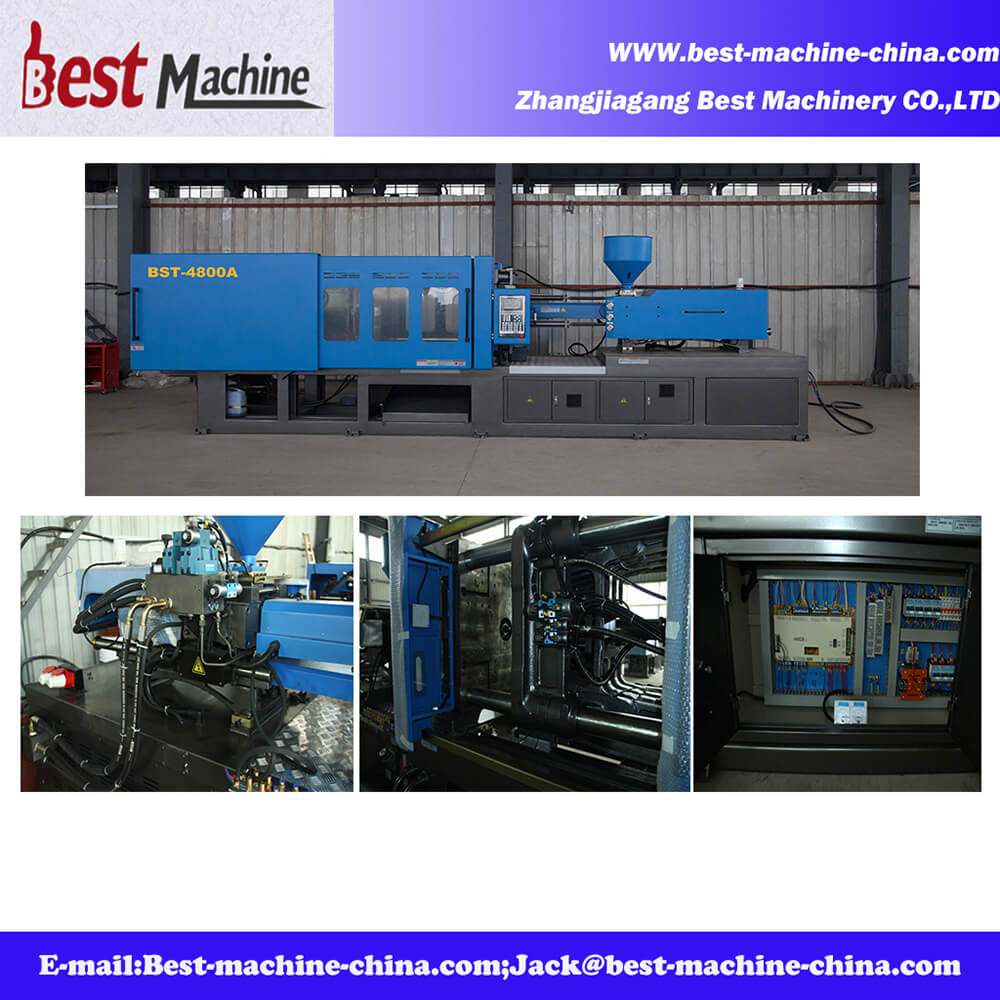

BST-4800A injection molding machine
The computer is imported from Industry family,The LCD displaying screen with high clarity has Chinese and English language to display
New type 5-point toggle device with the advantage of stable movement curve and gentle shock
Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability
Transducer control clamping stroke
Nitrided screw and barrel with long service life
Smelted screw with big L/D ratio to the result of high quality plasticizing and color-fixing
Transducer control injection stroke

MODEL                            BST-4800A
Screw diameter mm 76 78
Shot size(theoretical) Cm³ 1766 1860
Shot weight g 1590 1670
Injection pressure Mpa 158 150
Injection rate g/s 398 420
Screw L/D ratio L/D 20.7 20.2
Screw speed r.p.m 0-160
Nozzle Diameter Srmm 20

Clamp tonnage KN 4800
Toggle stroke mm 710
Mould Thickness mm 280-750
Space between tie-bars mm 750X720
Ejector stroke mm 180
Ejector tonnage KN 125
Ejector number Piece 13
Hole Diameter mm 200

Heat power KW 23.4
Max. pump pressure MPa 16
Pump motor power KW 15+25
Valve Size mm cartridge valve
Machine dimension m 8.3X2.2X2.2
Machine weight t 16.3
Oil tank capacity L 600

Quality:12month Quality Guarantee,Free spare parts replacement,(Not include man-made sabotage)
Service:We provide free advanced training and maintance in china factory ,and 24hours on-line or phone service
If you request ,we also can provdie installaton and training abroad ,until customer’s satisfication
Delivery time:45-50days after advance payment
Payment:In cash ,T/T transfer ,LC etc
Goals:Chase customers’requirment ,and improve ourselves better
