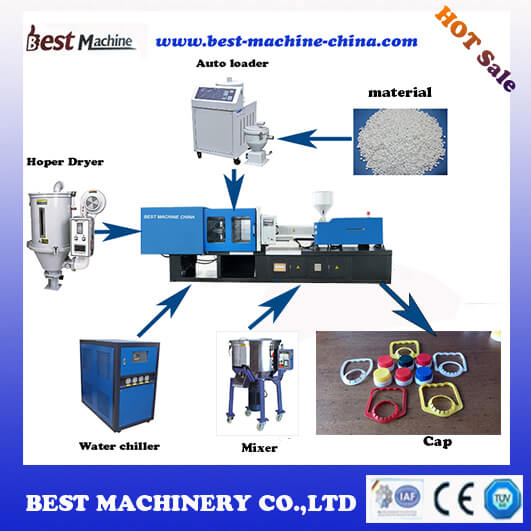

Plastic Oil Bottle Cap Injection Molding Machine

Plastic Oil Bottle Cap Injection Molding Machine

1)User friendly: Easy nozzle alignment after injection carriage improved. Easy care and maintenance.
2) Precision: high optimistic mechanical structure with high-tech controller,
greatly increase machine service life and precise.
3) Speedy: High injection speed reducing cycle time.
4) Durable: Thicker platens to add strength, free from deforming molds.

Quantity:

Inquire Add To Basket

Share this:

Model： BST-1400A
Brand： Best
Code： 8477101090
Shot weight：230-252g
Injection rate：95-100g/s
Mould thickness：150-420mm
Ejector tonnage：50kn
Clamp tonnage：1400kn
Space between tie-bar：428*386mm
Hole Diameter：100mm
Weight ：4.2t
Machine Dimension：4.8*1.6*1.7m

Product Description
Technical parameter

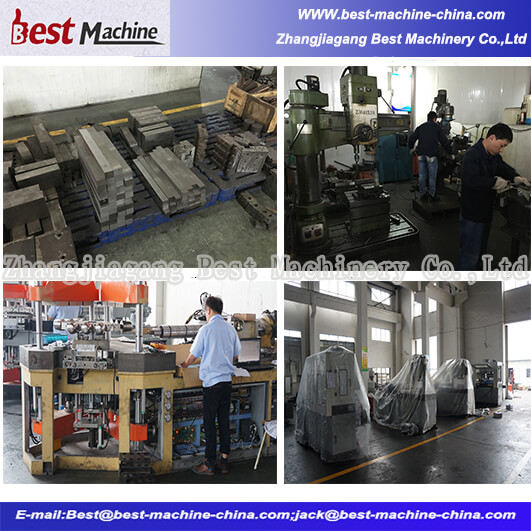

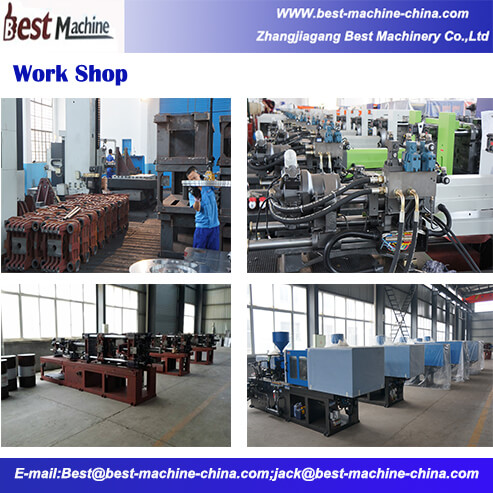

workshop
Service

Product performance and advantages:
1. Servo energy-saving system
Using the servo motor oil electricity composite structure
2. Servo motor high response feature
It costs only 0.05s for servo energy saving injection molding machines to achieve the maximum output, in comparison with conventional hydraulic injection molding machines. The response speed has been obviously increased, improving the production efficiency.
3. Unique function
Large colored screen with TFT interface
Full automatic close-loop control
Module design of hardware
Auto-tune PID temperature control
Pc interface USB, PIC, and FLASH…
Curve monitoring and analysis function
K-can data transmission (500Kbit/s)
On-line central monitoring function

MODEL/型号	BST-1400A
INJECTION UNIT/注塑部分		A	B
Screw diameter/螺杆直径	mm	38	40
Shot size(theoretical)/理论注塑容积	Cm³	256	280
Shot weight/理论注塑重量	g	230	252
Injection pressure/注塑压力	Mpa	176	160
Injection rate/注塑速率	g/s	95	100
Screw L/D ratio/螺杆长径比	L/D	23.4	22.2
Screw speed/螺杆转速	r.p.m	0-190
Nozzle Diameter/喷嘴球径	Srmm	10
CLAMPING/合模装置
Clamp tonnage/合模力	KN	1400
Toggle stroke/动模板行程	mm	365
Mould Thickness/允许模厚	mm	150-420
Space between tie-bars/拉杆间距	mm	428X386
Ejector stroke/顶出行程	mm	140
Ejector tonnage/顶出力	KN	50
Ejector number/顶出杆根数	Piece	5
Hole Diameter/模板定位孔直径	mm	100
OTHERS/其它
Heat power/加热功率	KW	8.2
Max. pump pressure/最大油泵压力	MPa	16
Pump motor power/油泵马达功率	KW	13
Valve Size/阀通径	mm	10
Machine dimension/机器外形尺寸	m	4.8X1.6X1.7
Machine weight/机器重量（约）	t	4.2
Oil tank capacity（邮箱容积）	L	220

What service can offer you ?
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
• 1 Years guarantee
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back to us if you got any questions.
