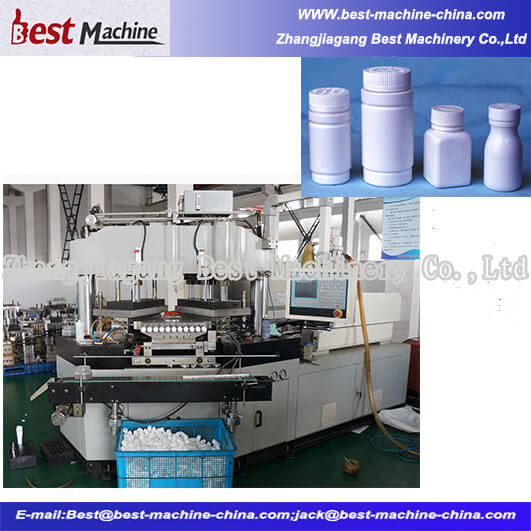

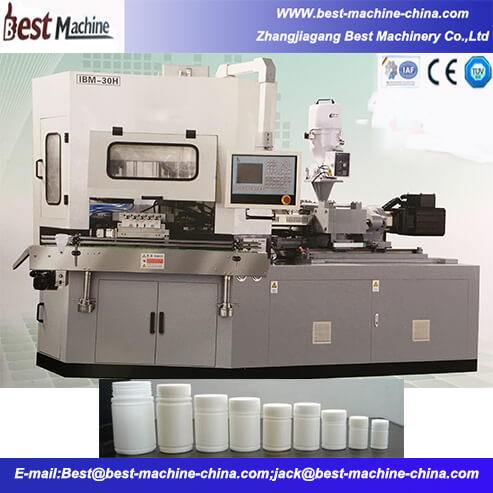

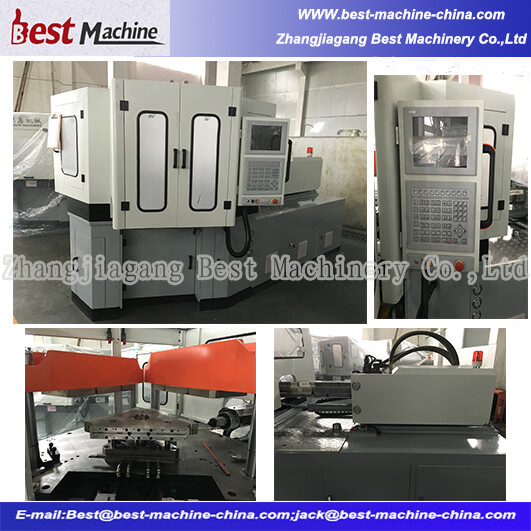

BSD-30H New Designed Plastic Bottle Injection Blow Molding Machine

BSD-30H New Designed Plastic Bottle Injection Blow Molding Machine

Specifications
Injection Blow Molding Machine
Automatic Working
Non Material Wastage Lower Investment
Easily Operation
2ml-1000ml Bottle

Quantity:

Inquire Add To Basket

Share this:

Model： BSD-30H
Brand： Best Machinery
Name：BSD-30H New Designed Plastic Bottle Injection Blow
Weight ：3.6t
Shot volume：200CM³
motor power：11.4kw
max.screw stroke：165mm
max.screw speed：10-225rpm
injection clamping force：300kn
blowing clamping force：80kn
Injection Pressure：175MPA
stripping stroke：180mm

Product Description
Technical parameters
Our service
Certification

Feature:
1)One step fast molding without scrap, good for continuous production meeting GMP standard;
2)Neck and thread in high precision dimension to meet various sealing requirement;
3)Smooth party lines on body and bottom for perfect surface finishing, various shape available;
4)Max. Uniformity of bottle weight, thickness and volume;
5)High speed production with multi cavities available on different bottle size;
6)Suitable material: PE, PP, PS, SAN, PETG, EVA...etc for various bottles;
7)Different method as option, big space for ease mould changing.

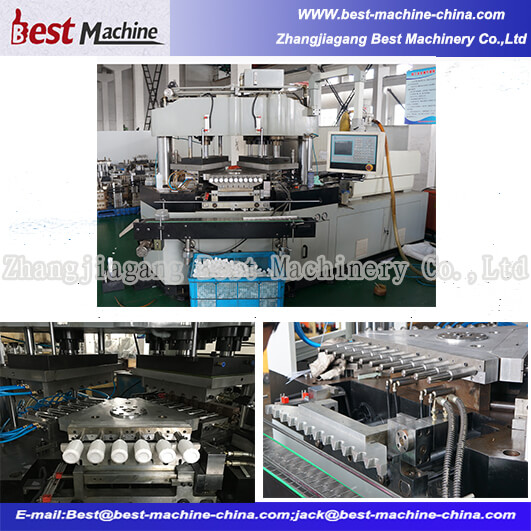

mould features:
1. Excellent Mechanical Strength, impact-resisting, and non-craking.
2. Bottle mouth and thread are of precise measurement, Enabling well
Close match with the bottle cap.
3. Plastic Medicine Bottle's safe thread can be molding directly, act in connect with safe bottle cap.
4. The size and weight of the product can calculate and design clearly and meet the requirement of the design without any deviation.
5. The surface of the bottle mouth, neck and the body is good luster and
Smoothness, the standard of bottle body is unity.
6. The joint seam on the bottle body is smooth, no scrap rubber.
7. The cause of the production, no scrap, save the raw material.

No.	item	Unit	Data
1	Dia.of screw	mm	40
2	Screw L/D		24
3	Shot volume	cm³	200
4	Injection Weight	g	163
5	Injection Pressure	Mpa	175
6	Max.screw stroke	mm	165
7	Max.screw speed	rpm	10-225
8	Heating capacity	kw	6
9	No.of heating zone	Qty	3
10	clamping&blowing system
11	clamping force of injection	KN	300
12	clamping force of blowing	KN	80
13	opening stroke of mold plant	mm	120
14	lifign height of rotary table	mm	60
15	max.platen size	mm	420*300
16	min.mold thickness	mm	180
17	heating capacity of mould	Kw	1.2-2.5
18	stripping system
19	stripping troke	mm	180
20	driving system
21	motor power	kw	11.4
22	hydraulic pressure	Mpa	14
23	product range
24	suitable bottle range	L	0.015-0.8
25	max.bottle height	mm	≤180
26	max.dia.of bottle	mm	≤100
27	other
28	dry cycle	s	3
29	min.Air pressure	Mpa	1.2
30	discharge rate of compressed air	m³/min	＞0.8
31	water flowage	m³/h	3
32	total rated power with mold heating	Kw	18.5
33	Dimension(LWH)	mm	305013002150
34	net weight	T	3.6

Our Services
1. We provide the complete machines' layout, design according to customer's factory.
2. We provide the complete English manual book for customer, all the machines' touch screen operation is English words, we have Russia, Spanish, Portuguese, French..ect to choose.
3. After delivery, we will send our engineer to customers' factory to install the machines and also train workers how to operate and maintenance. Engineer's salary: 80USD/Per day.
4. Our warranty time is 18 months after the machines installation.
5. We provide the 12 months easy broken spare parts as free, and also provide the spare parts book to customer.
6. Payment method: 30% T/T as deposit after signature the contract, 70% T/T or L/C after inspection before delivery.
7 Common delivery time: 45-70days after confirm the bottle and cap design.
