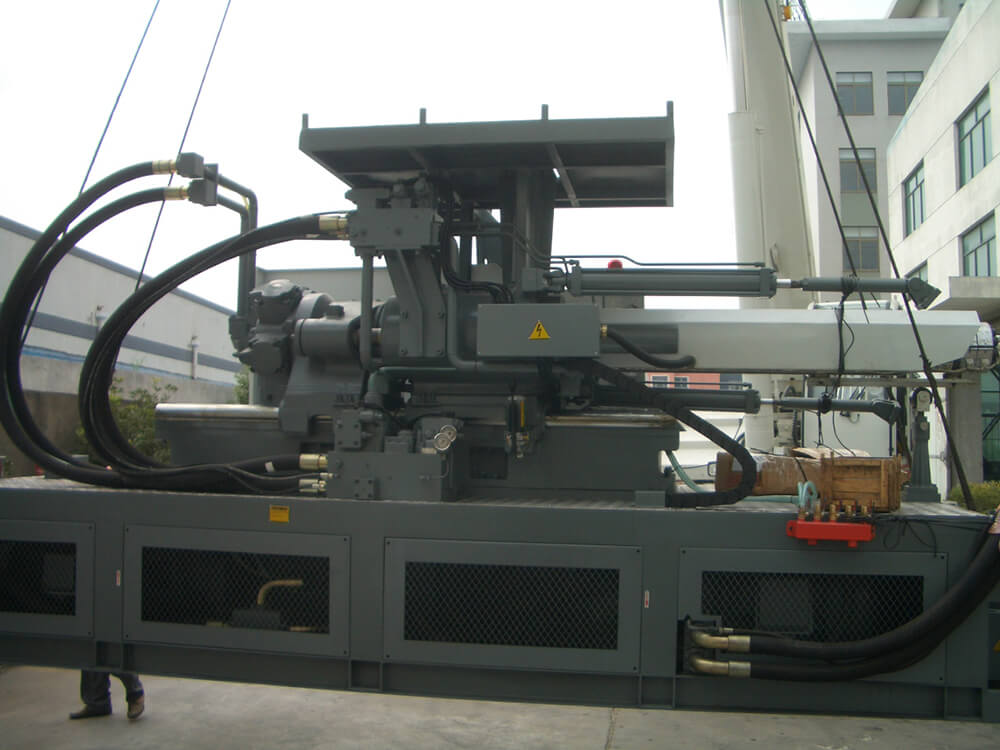

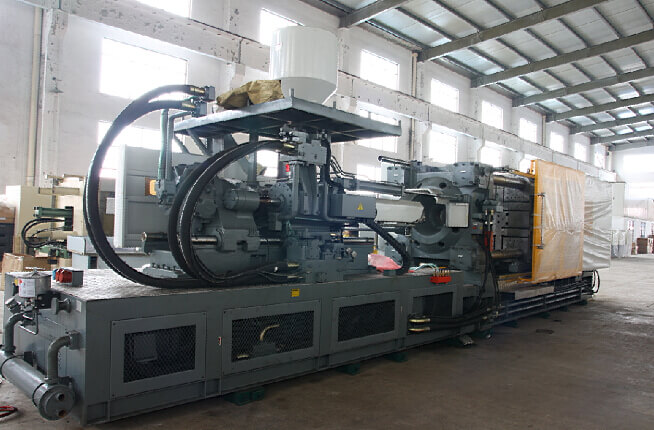

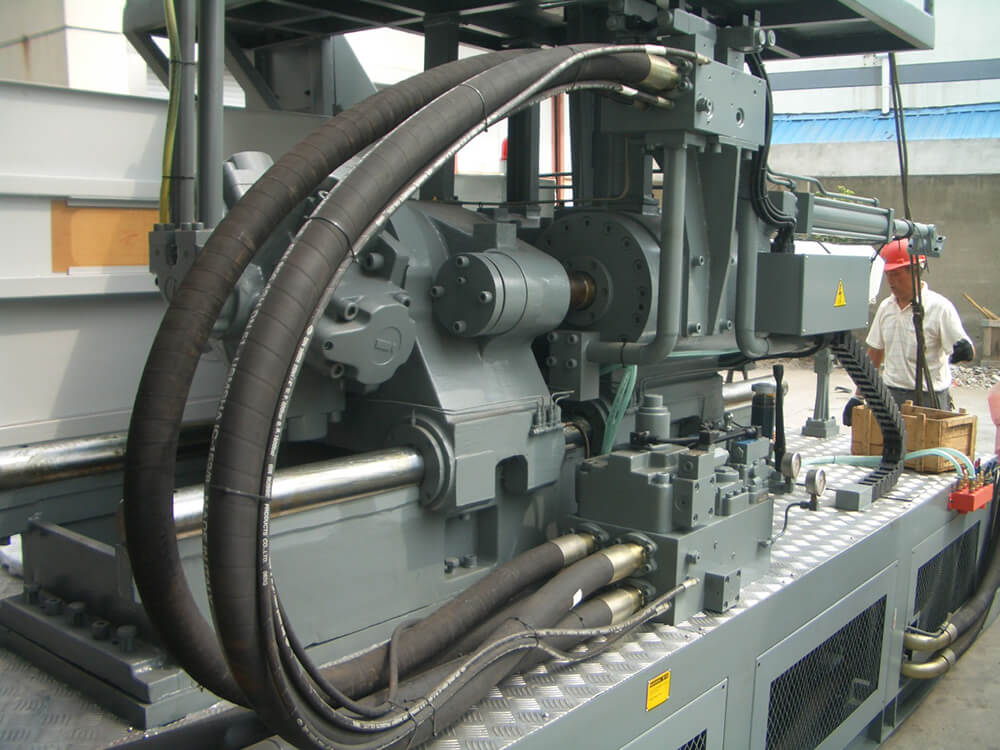

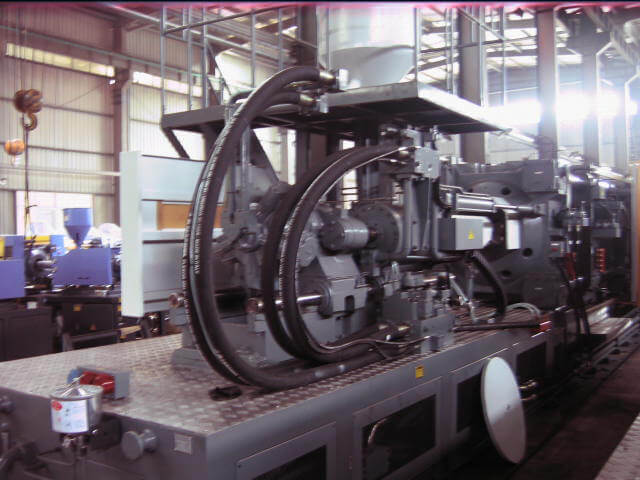

BST-7500A plastic injection molding machine BST-7500A plastic injection molding machine

BST-7500A Injection molding machine shot weight is3810-3960g,MAX CLAMPING STROKE:950MM,SPACE BETWEEN TIE BARS:961X961MM,we have Imported advanced computer systems, Chinese / English interface.
You can save 100 sets of mold parameters.
Advanced clamping structure and injection parts, precision hydraulic system and circuit design.

machine size(LxWxH):
  • 10.7x2.3x2.7m
Share this:
  • Model:BST-7500A
  • origin:Zhang Jia Gang city
  • packaging:the tray
  • Product Description
  • Product Description1
  • Product Description2
BST-7500A injection molding machine ,the computer is imported from industry family.THE LCD displaying screen with high clarity has Chinese and English language to display. can save 50 sets of mold parameters.
New type 5-point toggle device with the advantage of stable movement curve and gentle shpck.

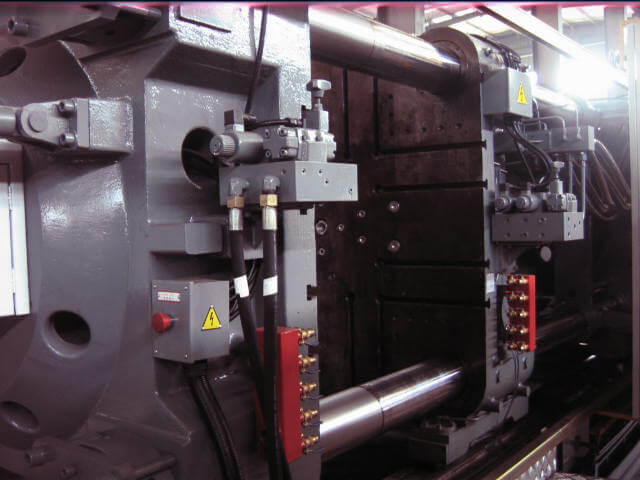

Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability
Transducer control clamping stroke
Mechanical and electrical dual safety interlock
Low presure mould protection function
Automatic centralized lubrication system with far pressure detector
Nitrided screw and barrel with long service life

MODEL                     BST-7500A
Screw diameter mm 103 105
Shot size(theoretical) Cm³ 4230 4400
Shot weight g 3810 3960
Injection pressure Mpa 152 146
Injection rate g/s 700 730
Screw L/D ratio L/D 21 20.6
Screw speed r.p.m 0-110
Nozzle Diameter Srmm 25

Clamp tonnage KN 7500
Toggle stroke mm 950
Mould Thickness mm 400-960
Space between tie-bars mm 961X961
Ejector stroke mm 260
Ejector tonnage KN 180
Ejector number Piece 21
Hole Diameter mm 250

Heat power KW 40.9
Max. pump pressure MPa 16
Pump motor power KW 30+37
Valve Size mm B
Machine dimension m 10.7X2.3X2.7
Machine weight t 38
Oil tank capacity L 1200

Quality:12month Quality Guarantee,Free spare parts replacement,(Not include man-made sabotage)
Service:We provide free advanced training and maintance in china factory ,and 24hours on-line or phone service
If you request ,we also can provdie installaton and training abroad ,until customer’s satisfication
Delivery time:80-90days after advance payment
Payment:In cash ,T/T transfer ,LC etc
Goals:Chase customers’requirment ,and improve ourselves better
